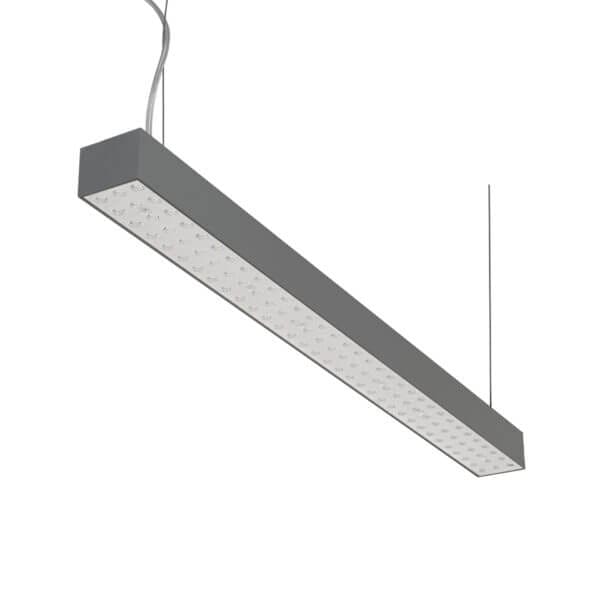

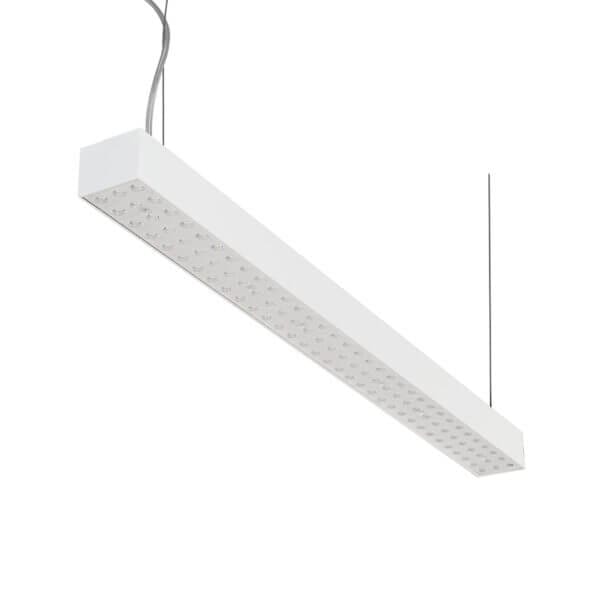

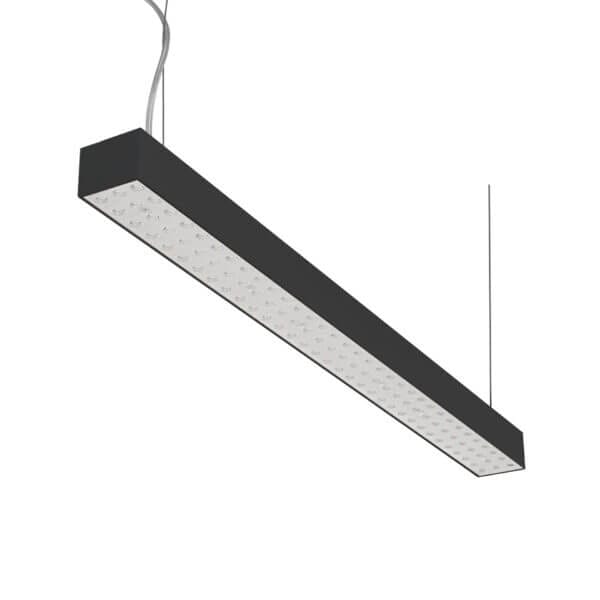

The suspended version of the Forsite TR. Straightforward, powerful and energy-efficient. A linear luminaire with everything you need to make a difference in larger areas. Think of industrial areas, car showrooms or retail spaces. Choose from a wide beam angle range and the right light colour temperature to create the perfect lighting conditions.The suspension parts and ceiling cap have to be ordered separately.
Products.
FORSITE 865 PE
-
Digital dimming interface.
-
Unified Glare Rating < 19, suitable for reading, writing, training, meetings and PC based working environments.
-
Warranty on quality in years.
-
Replaceable (LED only) light source by a professional.
-
Replaceable control gear by a professional.
| Article Number | Luminous Flux | Connected Load | Cct | Cri | Color Housing | Beam Angle |
|---|---|---|---|---|---|---|
| 4.006M0A83000DA00000 | 6800Lm | 52W | 3000K | (RA) >80 | White (RAL 9003) | Double Asymmetric |
| 4.006M0B83000DA00000 | 6800Lm | 52W | 3000K | (RA) >80 | Black (RAL 9005) | Double Asymmetric |
| 4.006M0C83000DA00000 | 6800Lm | 52W | 3000K | (RA) >80 | Grey (RAL 9006) | Double Asymmetric |
| 4.006M0A830009000000 | 6950Lm | 52W | 3000K | (RA) >80 | White (RAL 9003) | 90° |
| 4.006M0B830009000000 | 6950Lm | 52W | 3000K | (RA) >80 | Black (RAL 9005) | 90° |
| 4.006M0C830009000000 | 6950Lm | 52W | 3000K | (RA) >80 | Grey (RAL 9006) | 90° |
| 4.006I0A83000DA00000 | 4900Lm | 36W | 3000K | (RA) >80 | White (RAL 9003) | Double Asymmetric |
| 4.006I0B83000DA00000 | 4900Lm | 36W | 3000K | (RA) >80 | Black (RAL 9005) | Double Asymmetric |
| 4.006I0C83000DA00000 | 4900Lm | 36W | 3000K | (RA) >80 | Grey (RAL 9006) | Double Asymmetric |
| 4.006I0A830006000000 | 4500Lm | 36W | 3000K | (RA) >80 | White (RAL 9003) | 60° |
| 4.006I0B830006000000 | 4500Lm | 36W | 3000K | (RA) >80 | Black (RAL 9005) | 60° |
| 4.006I0C830006000000 | 4500Lm | 36W | 3000K | (RA) >80 | Grey (RAL 9006) | 60° |
| 4.006I0A830003000000 | 4550Lm | 36W | 3000K | (RA) >80 | White (RAL 9003) | 30° |
| 4.006I0B830003000000 | 4550Lm | 36W | 3000K | (RA) >80 | Black (RAL 9005) | 30° |
| 4.006I0C830003000000 | 4550Lm | 36W | 3000K | (RA) >80 | Grey (RAL 9006) | 30° |
| 4.006I0A830009000000 | 5000Lm | 36W | 3000K | (RA) >80 | White (RAL 9003) | 90° |
| 4.006I0B830009000000 | 5000Lm | 36W | 3000K | (RA) >80 | Black (RAL 9005) | 90° |
| 4.006I0C830009000000 | 5000Lm | 36W | 3000K | (RA) >80 | Grey (RAL 9006) | 90° |
| 4.006I0A84000DA00000 | 5100Lm | 36W | 4000K | (RA) >80 | White (RAL 9003) | Double Asymmetric |
| 4.006I0B84000DA00000 | 5100Lm | 36W | 4000K | (RA) >80 | Black (RAL 9005) | Double Asymmetric |
| 4.006I0C84000DA00000 | 5100Lm | 36W | 4000K | (RA) >80 | Grey (RAL 9006) | Double Asymmetric |
| 4.006I0A840006000000 | 4700Lm | 36W | 4000K | (RA) >80 | White (RAL 9003) | 60° |
| 4.006I0B840006000000 | 4700Lm | 36W | 4000K | (RA) >80 | Black (RAL 9005) | 60° |
| 4.006I0C840006000000 | 4700Lm | 36W | 4000K | (RA) >80 | Grey (RAL 9006) | 60° |
| 4.006I0A840003000000 | 4750Lm | 36W | 4000K | (RA) >80 | White (RAL 9003) | 30° |
| 4.006I0B840003000000 | 4750Lm | 36W | 4000K | (RA) >80 | Black (RAL 9005) | 30° |
| 4.006I0C840003000000 | 4750Lm | 36W | 4000K | (RA) >80 | Grey (RAL 9006) | 30° |
| 4.006I0A840009000000 | 4400Lm | 36W | 4000K | (RA) >80 | White (RAL 9003) | 90° |
| 4.006I0B840009000000 | 4400Lm | 36W | 4000K | (RA) >80 | Black (RAL 9005) | 90° |
| 4.006I0C840009000000 | 4400Lm | 36W | 4000K | (RA) >80 | Grey (RAL 9006) | 90° |
| 4.006I0A93000DA00000 | 4100Lm | 36W | 3000K | (RA) >90 | White (RAL 9003) | Double Asymmetric |
| 4.006I0B93000DA00000 | 4100Lm | 36W | 3000K | (RA) >90 | Black (RAL 9005) | Double Asymmetric |
| 4.006I0C93000DA00000 | 4100Lm | 36W | 3000K | (RA) >90 | Grey (RAL 9006) | Double Asymmetric |
| 4.006I0A930006000000 | 3800Lm | 36W | 3000K | (RA) >90 | White (RAL 9003) | 60° |
| 4.006I0B930006000000 | 3800Lm | 36W | 3000K | (RA) >90 | Black (RAL 9005) | 60° |
| 4.006I0C930006000000 | 3800Lm | 36W | 3000K | (RA) >90 | Grey (RAL 9006) | 60° |
| 4.006I0A930003000000 | 3850Lm | 36W | 3000K | (RA) >90 | White (RAL 9003) | 30° |
| 4.006I0B930003000000 | 3850Lm | 36W | 3000K | (RA) >90 | Black (RAL 9005) | 30° |
| 4.006I0C930003000000 | 3850Lm | 36W | 3000K | (RA) >90 | Grey (RAL 9006) | 30° |
| 4.006I0A930009000000 | 4200Lm | 36W | 3000K | (RA) >90 | White (RAL 9003) | 90° |
| 4.006I0B930009000000 | 4200Lm | 36W | 3000K | (RA) >90 | Black (RAL 9005) | 90° |
| 4.006I0C930009000000 | 4200Lm | 36W | 3000K | (RA) >90 | Grey (RAL 9006) | 90° |
| 4.006I0A94000DA00000 | 4300Lm | 36W | 4000K | (RA) >90 | White (RAL 9003) | Double Asymmetric |
| 4.006I0B94000DA00000 | 4300Lm | 36W | 4000K | (RA) >90 | Black (RAL 9005) | Double Asymmetric |
| 4.006I0C94000DA00000 | 4300Lm | 36W | 4000K | (RA) >90 | Grey (RAL 9006) | Double Asymmetric |
| 4.006I0A940006000000 | 4000Lm | 36W | 4000K | (RA) >90 | White (RAL 9003) | 60° |
| 4.006I0B940006000000 | 4000Lm | 36W | 4000K | (RA) >90 | Black (RAL 9005) | 60° |
| 4.006I0C940006000000 | 4000Lm | 36W | 4000K | (RA) >90 | Grey (RAL 9006) | 60° |
| 4.006I0A940003000000 | 4050Lm | 36W | 4000K | (RA) >90 | White (RAL 9003) | 30° |
| 4.006I0B940003000000 | 4050Lm | 36W | 4000K | (RA) >90 | Black (RAL 9005) | 30° |
| 4.006I0C940003000000 | 4050Lm | 36W | 4000K | (RA) >90 | Grey (RAL 9006) | 30° |
| 4.006I0A940009000000 | 4400Lm | 36W | 4000K | (RA) >90 | White (RAL 9003) | 90° |
| 4.006I0B940009000000 | 4400Lm | 36W | 4000K | (RA) >90 | Black (RAL 9005) | 90° |
| 4.006I0C940009000000 | 4400Lm | 36W | 4000K | (RA) >90 | Grey (RAL 9006) | 90° |
| 4.006M0A830006000000 | 6300Lm | 52W | 3000K | (RA) >80 | White (RAL 9003) | 60° |
| 4.006M0B830006000000 | 6300Lm | 52W | 3000K | (RA) >80 | Black (RAL 9005) | 60° |
| 4.006M0C830006000000 | 6300Lm | 52W | 3000K | (RA) >80 | Grey (RAL 9006) | 60° |
| 4.006M0A830003000000 | 6350Lm | 52W | 3000K | (RA) >80 | White (RAL 9003) | 30° |
| 4.006M0B830003000000 | 6350Lm | 52W | 3000K | (RA) >80 | Black (RAL 9005) | 30° |
| 4.006M0C830003000000 | 6350Lm | 52W | 3000K | (RA) >80 | Grey (RAL 9006) | 30° |
| 4.006M0A84000DA00000 | 7150Lm | 52W | 4000K | (RA) >80 | White (RAL 9003) | Double Asymmetric |
| 4.006M0B84000DA00000 | 7150Lm | 52W | 4000K | (RA) >80 | Black (RAL 9005) | Double Asymmetric |
| 4.006M0C84000DA00000 | 7150Lm | 52W | 4000K | (RA) >80 | Grey (RAL 9006) | Double Asymmetric |
| 4.006M0A840006000000 | 6600Lm | 52W | 4000K | (RA) >80 | White (RAL 9003) | 60° |
| 4.006M0B840006000000 | 6600Lm | 52W | 4000K | (RA) >80 | Black (RAL 9005) | 60° |
| 4.006M0C840006000000 | 6600Lm | 52W | 4000K | (RA) >80 | Grey (RAL 9006) | 60° |
| 4.006M0A840003000000 | 6650Lm | 52W | 4000K | (RA) >80 | White (RAL 9003) | 30° |
| 4.006M0B840003000000 | 6650Lm | 52W | 4000K | (RA) >80 | Black (RAL 9005) | 30° |
| 4.006M0C840003000000 | 6650Lm | 52W | 4000K | (RA) >80 | Grey (RAL 9006) | 30° |
| 4.006M0A840009000000 | 7300Lm | 52W | 4000K | (RA) >80 | White (RAL 9003) | 90° |
| 4.006M0B840009000000 | 7300Lm | 52W | 4000K | (RA) >80 | Black (RAL 9005) | 90° |
| 4.006M0C840009000000 | 7300Lm | 52W | 4000K | (RA) >80 | Grey (RAL 9006) | 90° |
| 4.006M0A93000DA00000 | 5700Lm | 52W | 3000K | (RA) >90 | White (RAL 9003) | Double Asymmetric |
| 4.006M0B93000DA00000 | 5700Lm | 52W | 3000K | (RA) >90 | Black (RAL 9005) | Double Asymmetric |
| 4.006M0C93000DA00000 | 5700Lm | 52W | 3000K | (RA) >90 | Grey (RAL 9006) | Double Asymmetric |
| 4.006M0A930006000000 | 5250Lm | 52W | 3000K | (RA) >90 | White (RAL 9003) | 60° |
| 4.006M0B930006000000 | 5250Lm | 52W | 3000K | (RA) >90 | Black (RAL 9005) | 60° |
| 4.006M0C930006000000 | 5250Lm | 52W | 3000K | (RA) >90 | Grey (RAL 9006) | 60° |
| 4.006M0A930003000000 | 5300lm | 52W | 3000K | (RA) >90 | White (RAL 9003) | 30° |
| 4.006M0B930003000000 | 5300lm | 52W | 3000K | (RA) >90 | Black (RAL 9005) | 30° |
| 4.006M0C930003000000 | 5300lm | 52W | 3000K | (RA) >90 | Grey (RAL 9006) | 30° |
| 4.006M0A930009000000 | 5800Lm | 52W | 3000K | (RA) >90 | White (RAL 9003) | 90° |
| 4.006M0B930009000000 | 5800Lm | 52W | 3000K | (RA) >90 | Black (RAL 9005) | 90° |
| 4.006M0C930009000000 | 5800Lm | 52W | 3000K | (RA) >90 | Grey (RAL 9006) | 90° |
| 4.006M0A94000DA00000 | 5950Lm | 52W | 4000K | (RA) >90 | White (RAL 9003) | Double Asymmetric |
| 4.006M0B94000DA00000 | 5950Lm | 52W | 4000K | (RA) >90 | Black (RAL 9005) | Double Asymmetric |
| 4.006M0C94000DA00000 | 5950Lm | 52W | 4000K | (RA) >90 | Grey (RAL 9006) | Double Asymmetric |
| 4.006M0A940006000000 | 5500Lm | 52W | 4000K | (RA) >90 | White (RAL 9003) | 60° |
| 4.006M0B940006000000 | 5500Lm | 52W | 4000K | (RA) >90 | Black (RAL 9005) | 60° |
| 4.006M0C940006000000 | 5500Lm | 52W | 4000K | (RA) >90 | Grey (RAL 9006) | 60° |
| 4.006M0A940003000000 | 5550Lm | 52W | 4000K | (RA) >90 | White (RAL 9003) | 30° |
| 4.006M0B940003000000 | 5550Lm | 52W | 4000K | (RA) >90 | Black (RAL 9005) | 30° |
| 4.006M0C940003000000 | 5550Lm | 52W | 4000K | (RA) >90 | Grey (RAL 9006) | 30° |
| 4.006M0A940009000000 | 6100Lm | 52W | 4000K | (RA) >90 | White (RAL 9003) | 90° |
| 4.006M0B940009000000 | 6100Lm | 52W | 4000K | (RA) >90 | Black (RAL 9005) | 90° |
| 4.006M0C940009000000 | 6100Lm | 52W | 4000K | (RA) >90 | Grey (RAL 9006) | 90° |
