EDDA S HE

Black version of the Edda S HE trackspot by Light4U.

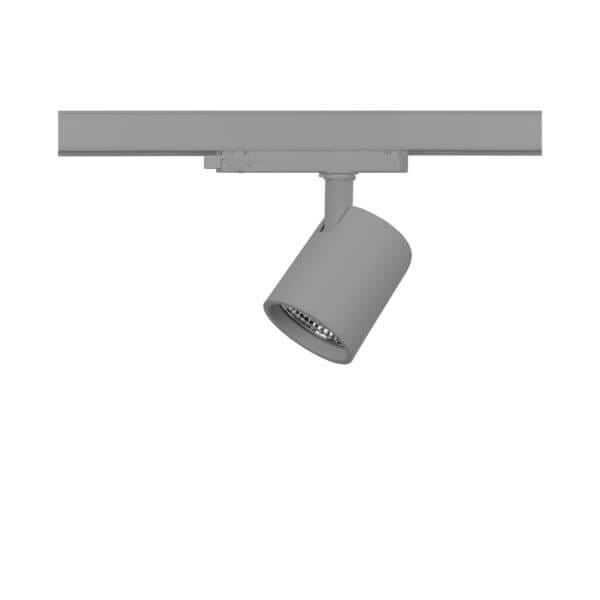

Grey version of the Edda S HE trackspot by Light4U.

EDDA S HE

Light4U Edda S HE is a high-efficiency track spotlight designed for retail and commercial spaces with lower ceilings or limited installation height. With a compact size of only 85mm in diameter and a head height of 104mm, it fits easily into smaller environments without compromising on light output. It delivers up to 150 lm/W and a maximum output of 2850lm, making it an ideal solution for smaller shops, boutiques, or hospitality projects.

Edda S HE offers beam angles of 15°, 25°, 45°, or 60° for flexible accent or general lighting. It features excellent colour consistency with a 2-step MacAdam and CRI>90. Accessories such as protective glass or barndoor are available for additional glare control. Tunable White options allow you to create adaptable lighting scenes and adjust the atmosphere throughout the day. Available in black, white, or grey finishes. Control options include on/off, phase-cut, DALI, DALI for 3-phase track systems, or Casambi for wireless control. A high-efficiency spotlight with compact design and impressive lighting performance for small-scale professional applications.

Accentuates the freshness of fruit and vegetables.
Warm yellowish light gives a perfect appearance to cheese and other dairy products.
Fresh and cooked meats have a saturated red colour under this light. A boost of red for the meat counter.
Bluish white light promotes freshness of fish and seafood.
This light colour has a light brown tinge to give an oven-fresh appearance to crusty bakery products.
Optimized light spectrum for perfect fashion presentation.
This LED module offers the high quality of light that is needed for displaying high value exhibits. The average value of the Art series is an impressive CRI 98. MacAdam 2 ellipses are provided in this special product category to also provide an outstanding color consistency.
For spot and accent lighting in fashion, retail, hospitality and supermarket applications.
Spectral LED matches natural light over the visible spectrum.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Light color from 2700K to 6500K to set a individual color temperature depending on application. Used for well being (daylight simulation) and for increase the performance in offices and workshops.
Phase-cut dimming.
Digital dimming interface.
Wireless lighting control based on Bluetooth.
The luminaire is as well available for 1-phase tracks.
The luminaire is as well available for 3-phase tracks.
The clear glass is protecting the light source and reflector from dust and other dirt that could enter the optical part of the luminaire.
The frosted glass is protecting the light source and reflector from dust and other dirt that could enter the optical part of the luminaire. In addition to that, it also widens the beam and creates a different footprint.
Honeycombs are widely used to reduce the direct glare. Luminaires with honeycombs have usually a tighter beam.
Shape the light by using barn doors. Two side flaps closed together produce a slim light shape like light passing through a partially open door. All four doors closed together will produce a square focussed beam of light.
Warranty on quality in years.
Replaceable control gear by a professional.
Replaceable (LED only) light source by a professional.

Article Number	Luminous Flux [lm]	System Power [W]	CCT [K]	Housing Colour	Beam Angle [deg]
2.039BHA930PW1500000	1600lm	11W	3000K PW	White (RAL 9003)	15°
2.039BHA940PW1500000	1750lm	11W	4000K PW	White (RAL 9003)	15°
2.039BHB930PW1500000	1600lm	11W	3000K PW	Black (RAL 9005)	15°
2.039BHB940PW1500000	1750lm	11W	4000K PW	Black (RAL 9005)	15°
2.039BHC930PW1500000	1600lm	11W	3000K PW	Grey (RAL 9006)	15°
2.039BHC940PW1500000	1750lm	11W	4000K PW	Grey (RAL 9006)	15°
2.039DHA930PW1500000	2650lm	19W	3000K PW	White (RAL 9003)	15°
2.039DHB930PW1500000	2650lm	19W	3000K PW	Black (RAL 9005)	15°
2.039DHB940PW1500000	2950lm	19W	4000K PW	Black (RAL 9005)	15°
2.039DHC930PW1500000	2650lm	19W	3000K PW	Grey (RAL 9006)	15°
2.039DHC940PW1500000	2950lm	19W	4000K PW	Grey (RAL 9006)	15°
2.039BHA930PW2500000	1600lm	11W	3000K PW	White (RAL 9003)	25°
2.039BHA940PW2500000	1750lm	11W	4000K PW	White (RAL 9003)	25°
2.039BHB930PW2500000	1600lm	11W	3000K PW	Black (RAL 9005)	25°
2.039BHB940PW2500000	1750lm	11W	4000K PW	Black (RAL 9005)	25°
2.039BHC930PW2500000	1600lm	11W	3000K PW	Grey (RAL 9006)	25°
2.039BHC940PW2500000	1750lm	11W	4000K PW	Grey (RAL 9006)	25°
2.039DHA930PW2500000	2650lm	19W	3000K PW	White (RAL 9003)	25°
2.039DHA940PW2500000	2950lm	19W	4000K PW	White (RAL 9003)	25°
2.039DHB930PW2500000	2650lm	19W	3000K PW	Black (RAL 9005)	25°
2.039DHB940PW2500000	2950lm	19W	4000K PW	Black (RAL 9005)	25°
2.039DHC930PW2500000	2650lm	19W	3000K PW	Grey (RAL 9006)	25°
2.039DHC940PW2500000	2950lm	19W	4000K PW	Grey (RAL 9006)	25°
2.039BHA930PW4000000	1600lm	11W	3000K PW	White (RAL 9003)	40°
2.039BHA940PW4000000	1750lm	11W	4000K PW	White (RAL 9003)	40°
2.039BHB930PW4000000	1600lm	11W	3000K PW	Black (RAL 9005)	40°
2.039BHB940PW4000000	1750lm	11W	4000K PW	Black (RAL 9005)	40°
2.039BHC930PW4000000	1600lm	11W	3000K PW	Grey (RAL 9006)	40°
2.039BHC940PW4000000	1750lm	11W	4000K PW	Grey (RAL 9006)	40°
2.039DHA930PW4000000	2650lm	19W	3000K PW	White (RAL 9003)	40°
2.039DHA940PW4000000	2950lm	19W	4000K PW	White (RAL 9003)	40°
2.039DHB930PW4000000	2650lm	19W	3000K PW	Black (RAL 9005)	40°
2.039DHB940PW4000000	2950lm	19W	4000K PW	Black (RAL 9005)	40°
2.039DHC930PW4000000	2650lm	19W	3000K PW	Grey (RAL 9006)	40°
2.039DHC940PW4000000	2950lm	19W	4000K PW	Grey (RAL 9006)	40°
2.039BHA930PW6500000	1600lm	11W	3000K PW	White (RAL 9003)	65°
2.039BHA940PW6500000	1750lm	11W	4000K PW	White (RAL 9003)	65°
2.039BHB930PW6500000	1600lm	11W	3000K PW	Black (RAL 9005)	65°
2.039BHB940PW6500000	1750lm	11W	4000K PW	Black (RAL 9005)	65°
2.039BHC930PW6500000	1600lm	11W	3000K PW	Grey (RAL 9006)	65°
2.039DHA930PW6500000	2650lm	19W	3000K PW	White (RAL 9003)	65°
2.039DHA940PW6500000	2950lm	19W	4000K PW	White (RAL 9003)	65°
2.039DHB930PW6500000	2650lm	19W	3000K PW	Black (RAL 9005)	65°
2.039DHB940PW6500000	2950lm	19W	4000K PW	Black (RAL 9005)	65°
2.039DHC930PW6500000	2650lm	19W	3000K PW	Grey (RAL 9006)	65°
2.039DHA940PW1500000	2950lm	19W	4000K PW	White (RAL 9003)	15°
2.039BHC940PW6500000	1750lm	11W	4000K PW	Grey (RAL 9006)	65°
2.039DHC940PW6500000	2950lm	19W	4000K PW	Grey (RAL 9006)	65°
2.039BHA930001500000	1600lm	11W	3000K	White (RAL 9003)	15°
2.039BHA940001500000	1750lm	11W	4000K	White (RAL 9003)	15°
2.039BHB930001500000	1600lm	11W	3000K	Black (RAL 9005)	15°
2.039BHB940001500000	1750lm	11W	4000K	Black (RAL 9005)	15°
2.039BHC930001500000	1600lm	11W	3000K	Grey (RAL 9006)	15°
2.039BHC940001500000	1750lm	11W	4000K	Grey (RAL 9006)	15°
2.039DHA930001500000	2750lm	19W	3000K	White (RAL 9003)	15°
2.039DHA940001500000	2950lm	19W	4000K	White (RAL 9003)	15°
2.039DHB930001500000	2750lm	19W	3000K	Black (RAL 9005)	15°
2.039DHB940001500000	2950lm	19W	4000K	Black (RAL 9005)	15°
2.039DHC930001500000	2750lm	19W	3000K	Grey (RAL 9006)	15°
2.039DHC940001500000	2950lm	19W	4000K	Grey (RAL 9006)	15°
2.039BHA930002500000	1600lm	11W	3000K	White (RAL 9003)	25°
2.039BHA940002500000	1750lm	11W	4000K	White (RAL 9003)	25°
2.039BHB930002500000	1600lm	11W	3000K	Black (RAL 9005)	25°
2.039BHB940002500000	1750lm	11W	4000K	Black (RAL 9005)	25°
2.039BHC930002500000	1600lm	11W	3000K	Grey (RAL 9006)	25°
2.039BHC940002500000	1750lm	11W	4000K	Grey (RAL 9006)	25°
2.039DHA930002500000	2750lm	19W	3000K	White (RAL 9003)	25°
2.039DHA940002500000	2950lm	19W	4000K	White (RAL 9003)	25°
2.039DHB930002500000	2750lm	19W	3000K	Black (RAL 9005)	25°
2.039DHB940002500000	2950lm	19W	4000K	Black (RAL 9005)	25°
2.039DHC930002500000	2750lm	19W	3000K	Grey (RAL 9006)	25°
2.039DHC940002500000	2950lm	19W	4000K	Grey (RAL 9006)	25°
2.039BHA930004000000	1600lm	11W	3000K	White (RAL 9003)	40°
2.039BHA940004000000	1750lm	11W	4000K	White (RAL 9003)	40°
2.039BHB930004000000	1600lm	11W	3000K	Black (RAL 9005)	40°
2.039BHB940004000000	1750lm	11W	4000K	Black (RAL 9005)	40°
2.039BHC930004000000	1600lm	11W	3000K	Grey (RAL 9006)	40°
2.039BHC940004000000	1750lm	11W	4000K	Grey (RAL 9006)	40°
2.039DHA930004000000	2750lm	19W	3000K	White (RAL 9003)	40°
2.039DHA940004000000	2950lm	19W	4000K	White (RAL 9003)	40°
2.039DHB930004000000	2750lm	19W	3000K	Black (RAL 9005)	40°
2.039DHB940004000000	2950lm	19W	4000K	Black (RAL 9005)	40°
2.039DHC930004000000	2750lm	19W	3000K	Grey (RAL 9006)	40°
2.039DHC940004000000	2950lm	19W	4000K	Grey (RAL 9006)	40°
2.039BHA930006500000	1600lm	11W	3000K	White (RAL 9003)	65°
2.039BHA940006500000	1750lm	11W	4000K	White (RAL 9003)	65°
2.039BHB930006500000	1600lm	11W	3000K	Black (RAL 9005)	65°
2.039BHB940006500000	1750lm	11W	4000K	Black (RAL 9005)	65°
2.039BHC930006500000	1600lm	11W	3000K	Grey (RAL 9006)	65°
2.039BHC940006500000	1750lm	11W	4000K	Grey (RAL 9006)	65°
2.039DHA930006500000	2750lm	19W	3000K	White (RAL 9003)	65°
2.039DHA940006500000	2950lm	19W	4000K	White (RAL 9003)	65°
2.039DHB930006500000	2750lm	19W	3000K	Black (RAL 9005)	65°
2.039DHB940006500000	2950lm	19W	4000K	Black (RAL 9005)	65°
2.039DHC930006500000	2750lm	19W	3000K	Grey (RAL 9006)	65°
2.039DHC940006500000	2950lm	19W	4000K	Grey (RAL 9006)	65°
2.039CHA930001500000	1950lm	14W	3000K	White (RAL 9003)	15°
2.039CHA940001500000	2100lm	14W	4000K	White (RAL 9003)	15°
2.039CHB930001500000	1950lm	14W	3000K	Black (RAL 9005)	15°
2.039CHB940001500000	2100lm	14W	4000K	Black (RAL 9005)	15°
2.039CHC930001500000	1950lm	14W	3000K	Grey (RAL 9006)	15°
2.039CHC940001500000	2100lm	14W	4000K	Grey (RAL 9006)	15°
2.039CHA930002500000	1950lm	14W	3000K	White (RAL 9003)	25°
2.039CHA940002500000	2100lm	14W	4000K	White (RAL 9003)	25°
2.039CHB930002500000	1950lm	14W	3000K	Black (RAL 9005)	25°
2.039CHB940002500000	2100lm	14W	4000K	Black (RAL 9005)	25°
2.039CHC930002500000	1950lm	14W	3000K	Grey (RAL 9006)	25°
2.039CHC940002500000	2100lm	14W	4000K	Grey (RAL 9006)	25°
2.039CHA930006500000	1950lm	14W	3000K	White (RAL 9003)	65°
2.039CHA940006500000	2100lm	14W	4000K	White (RAL 9003)	65°
2.039CHB930006500000	1950lm	14W	3000K	Black (RAL 9005)	65°
2.039CHB940006500000	2100lm	14W	4000K	Black (RAL 9005)	65°
2.039CHC930006500000	1950lm	14W	3000K	Grey (RAL 9006)	65°
2.039CHC940006500000	2100lm	14W	4000K	Grey (RAL 9006)	65°
2.039EHA183015D0000	1750lm	19W	1800K-3000K	White (RAL 9003)	15°
2.039EHA183025D0000	1750lm	19W	1800K-3000K	White (RAL 9003)	25°
2.039EHA183040D0000	1750lm	19W	1800K-3000K	White (RAL 9003)	40°
2.039EHA183060D0000	1750lm	19W	1800K-3000K	White (RAL 9003)	60°
2.039EHB183015D0000	1750lm	19W	1800K-3000K	Black (RAL 9005)	15°
2.039EHB183025D0000	1750lm	19W	1800K-3000K	Black (RAL 9005)	25°
2.039EHB183040D0000	1750lm	19W	1800K-3000K	Black (RAL 9005)	40°
2.039EHB183060D0000	1750lm	19W	1800K-3000K	Black (RAL 9005)	60°
2.039EHC183015D0000	1750lm	19W	1800K-3000K	Grey (RAL 9006)	15°
2.039EHC183025D0000	1750lm	19W	1800K-3000K	Grey (RAL 9006)	25°
2.039EHC183040D0000	1750lm	19W	1800K-3000K	Grey (RAL 9006)	40°
2.039EHC183060D0000	1750lm	19W	1800K-3000K	Grey (RAL 9006)	60°
2.039CHB940004000000	2100lm	14W	4000K	Black (RAL 9005)	40°
2.039CHA940004000000	2100lm	14W	4000K	White (RAL 9003)	40°
2.039CHC940004000000	2100lm	14W	4000K	Grey (RAL 9006)	40°
2.039CHB940PW4000000	2100lm	14W	4000K PW	Black (RAL 9005)	40°
2.039CHA940PW4000000	2100lm	14W	4000K PW	White (RAL 9003)	40°
2.039CHC940PW4000000	2100lm	14W	4000K PW	Grey (RAL 9006)	40°
2.039CHA930004000000	1950lm	14W	3000K	White (RAL 9003)	40°
2.039CHB930004000000	1950lm	14W	3000K	Black (RAL 9005)	40°
2.039CHC930004000000	1950lm	14W	3000K	Grey (RAL 9006)	40°
2.039CHA930PW1500000	1950lm	14W	3000K PW	White (RAL 9003)	15°
2.039CHB930PW1500000	1950lm	14W	3000K PW	Black (RAL 9005)	15°
2.039CHC930PW1500000	1950lm	14W	3000K PW	Grey (RAL 9006)	15°
2.039CHA930PW2500000	1950lm	14W	3000K PW	White (RAL 9003)	25°
2.039CHB930PW2500000	1950lm	14W	3000K PW	Black (RAL 9005)	25°
2.039CHC930PW2500000	1950lm	14W	3000K PW	Grey (RAL 9006)	25°
2.039CHA930PW4000000	1950lm	14W	3000K PW	White (RAL 9003)	40°
2.039CHB930PW4000000	1950lm	14W	3000K PW	Black (RAL 9005)	40°
2.039CHC930PW4000000	1950lm	14W	3000K PW	Grey (RAL 9006)	40°
2.039CHA930PW6500000	1950lm	14W	3000K PW	White (RAL 9003)	65°
2.039CHB930PW6500000	1950lm	14W	3000K PW	Black (RAL 9005)	65°
2.039CHC930PW6500000	1950lm	14W	3000K PW	Grey (RAL 9006)	65°
2.039CHB940PW6500000	2100lm	14W	4000K PW	Black (RAL 9005)	65°
2.039CHA940PW6500000	2100lm	14W	4000K PW	White (RAL 9003)	65°
2.039CHC940PW6500000	2100lm	14W	4000K PW	Grey (RAL 9006)	65°
2.039CHB940PW2500000	2100lm	14W	4000K PW	Black (RAL 9005)	25°
2.039CHA940PW2500000	2100lm	14W	4000K PW	White (RAL 9003)	25°
2.039CHC940PW2500000	2100lm	14W	4000K PW	Grey (RAL 9006)	25°
2.039CHB940PW1500000	2100lm	14W	4000K PW	Black (RAL 9005)	15°
2.039CHA940PW1500000	2100lm	14W	4000K PW	White (RAL 9003)	15°
2.039CHC940PW1500000	2100lm	14W	4000K PW	Grey (RAL 9006)	15°
