In modern lighting design, recessed luminaires are valued for their clean and integrated look. However, traditional fixed downlights often have one limitation. When the LED or module becomes outdated or fails, the entire fixture usually needs to be replaced. Donar M HE X-Flip solves this challenge by combining trusted recessed performance with modular adaptability. Below, we explain what X-Flip offers and how it differs from the standard Donar M HE.
The X-Flip advantage in recessed form
The X-Flip system is at the heart of this innovation. Instead of embedding the LED permanently in the housing, which can lead to waste when the module fails or becomes outdated, Donar M HE X-Flip uses a twistable, serviceable module. This means:
- No soldering, thermal paste, or special tools are needed for replacement.
- Simple upgrades to new CCTs, beam angles, or technologies over time.
- The housing stays in place while only the light source evolves.
- Less waste and lower maintenance costs, supporting circular design principles.
Due to this modular system, end users and facility managers can easily make changes or perform maintenance without removing ceilings or replacing entire fixtures. As a result, installations stay efficient and adaptable for years to come.

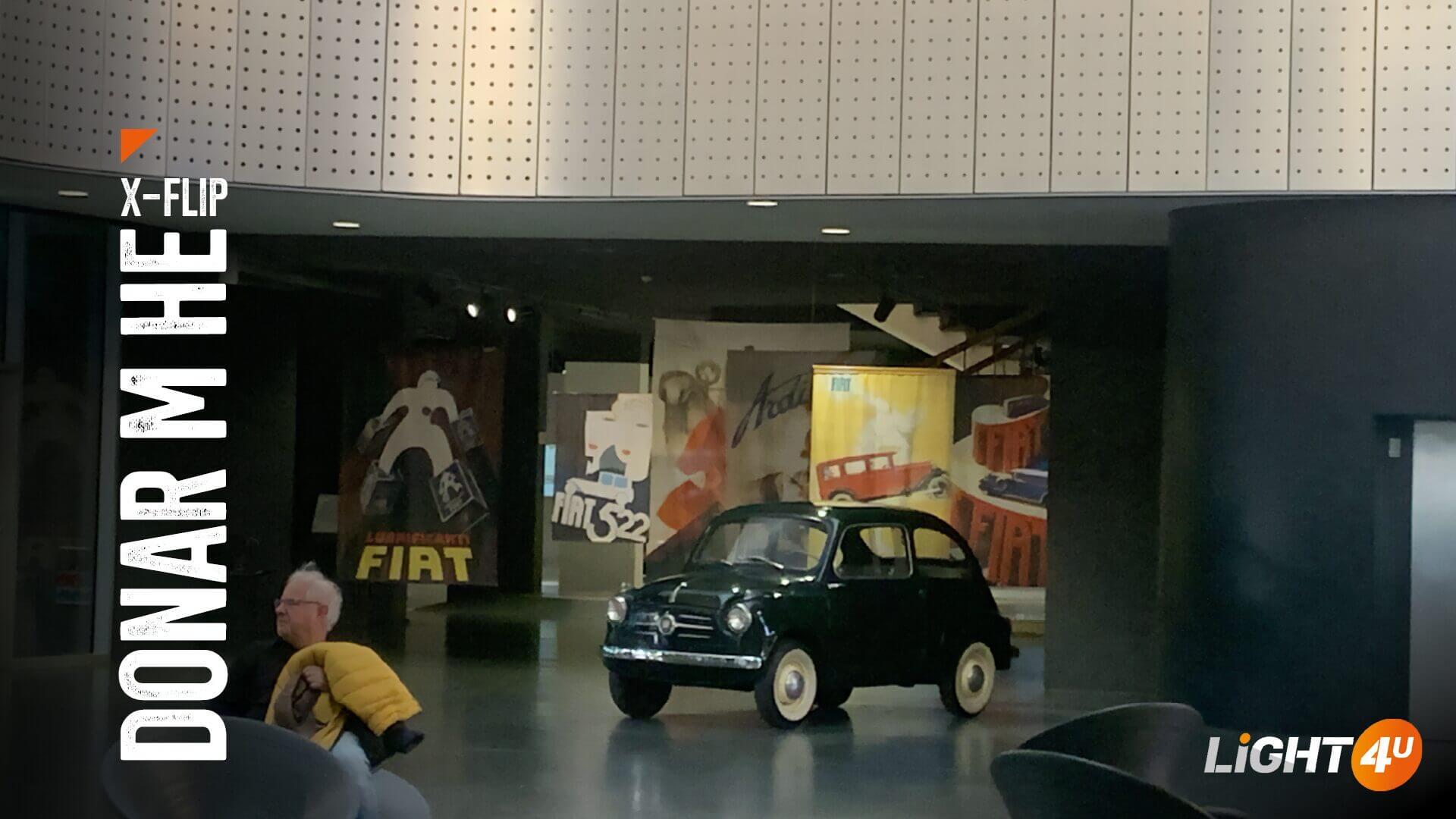

Performance and features of Donar M HE X-Flip
Donar M HE X-Flip is designed for ceiling cut-outs between 155 mm and 215 mm. It delivers up to 2600 lm with a system efficiency of around 137 lm/W. Several beam angles are available — 15°, 25°, 45°, and 70° — giving flexibility for accent, general, or wide illumination. Each version uses a CRI>90 LED module and supports clear or frosted glass accessories for optimal light control. With UGR<19, visual comfort is guaranteed, making it ideal for offices, retail, and hospitality environments.
Moreover, control options include on/off, phase-cut, DALI, and Casambi. An emergency kit is available on request. Therefore, Donar M HE X-Flip delivers proven recessed performance while staying flexible for future needs.
Standard Donar M HE vs Donar M HE X-Flip — key differences
| Feature | Standard Donar M HE | Donar M HE X-Flip |
|---|---|---|
| LED integration | Fixed, soldered/embedded in housing | Twistable X-Flip module — no soldering or thermal paste |
| Maintenance & upgrade | Requires skilled work or full fixture replacement | Quick, tool-free module swap |
| Lifetime of housing | Usually replaced when the LED fails | Housing remains usable for multiple LED cycles |
| Flexibility (CCT / beam) | Fixed at production | Interchangeable modules and reflectors |
| Output & efficacy | Up to ~3100 lm / 158 lm/W | Up to ~2600 lm / 137 lm/W |
| Beam options | 20°, 30°, 40°, 60° | 15°, 25°, 45°, 70° |
| Control & dimming | on/off, phase-cut, DALI, Casambi | on/off, phase-cut, DALI, Casambi |
| Ideal use case | Reliable, fixed downlight for new or retrofit ceilings | Serviceable, sustainable, and future-proof installations |
Benefits and use cases
Because it is recessed, Donar M HE X-Flip blends neatly into ceilings. It is ideal for retail, offices, hospitality, galleries, and high-end residential spaces. Its modular design also makes it easy to adjust over time. For example, if a project requires a different CCT, beam angle, or LED technology, the module can be replaced without needing to remove the luminaire body.
This approach reduces downtime, labour, and material waste while maintaining installations’ visual consistency. Therefore, for projects focused on longevity — such as showrooms, galleries, and commercial interiors — Donar M HE X-Flip offers a truly future-ready lighting solution.
Explore other X-Flip luminaires.
The X-Flip system is also part of other product families within our range:
- Weda HE X-Flip — a high-efficiency track spotlight.

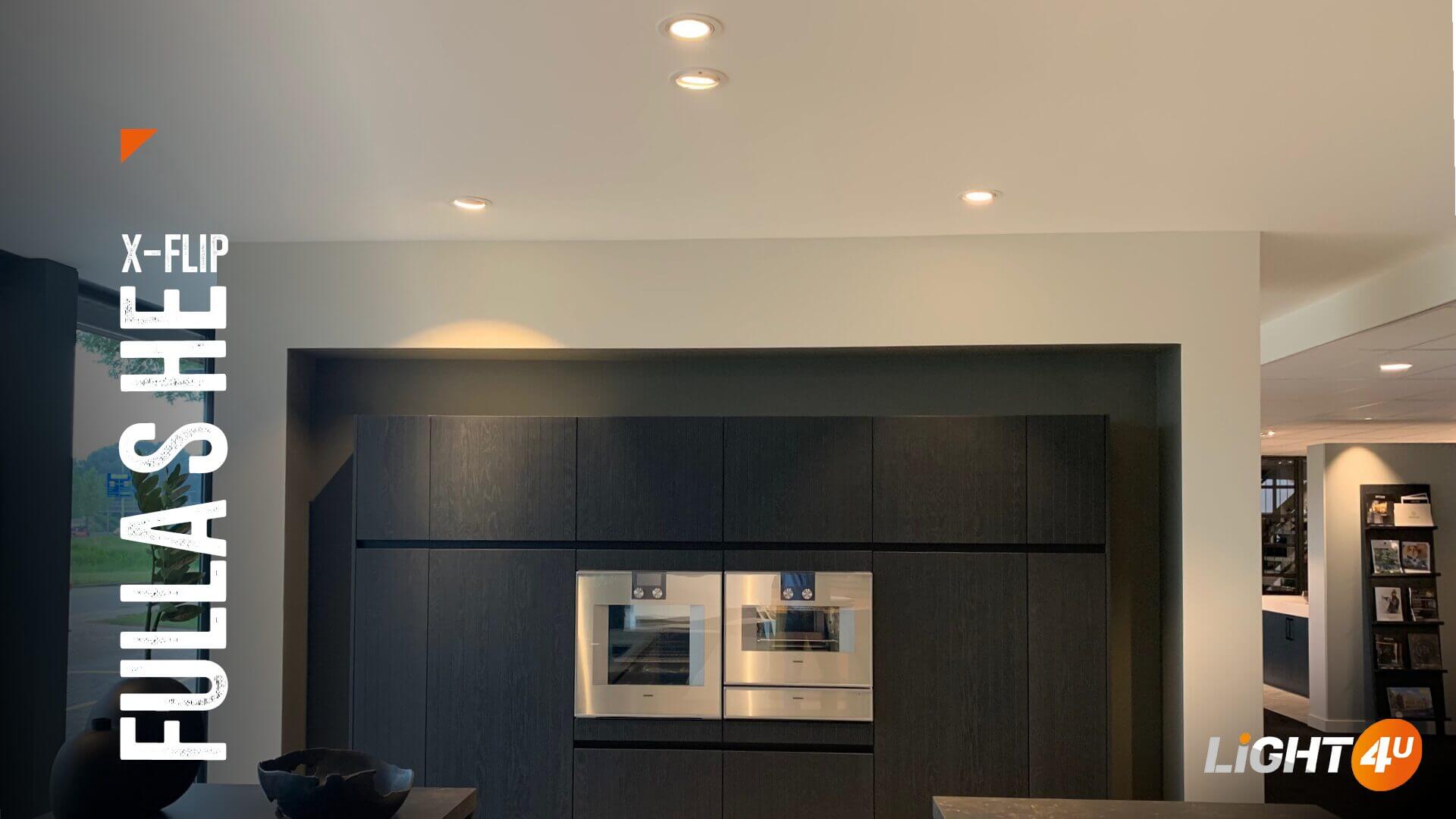

- Fulla S HE X-Flip — a surface-mounted downlight with a replaceable module.
Together, these luminaires create a growing ecosystem of modular and serviceable lighting solutions built around circular design principles.
Lighting engineered for tomorrow.
The development of the X-Flip system and its application in Donar M HE demonstrate Light4U’s commitment to purposeful innovation. Every luminaire is designed to perform and endure. This approach reduces waste, simplifies maintenance, and supports sustainability goals. With Donar M HE X-Flip, performance and flexibility unite in one recessed luminaire — lighting built for the future.
