Products.

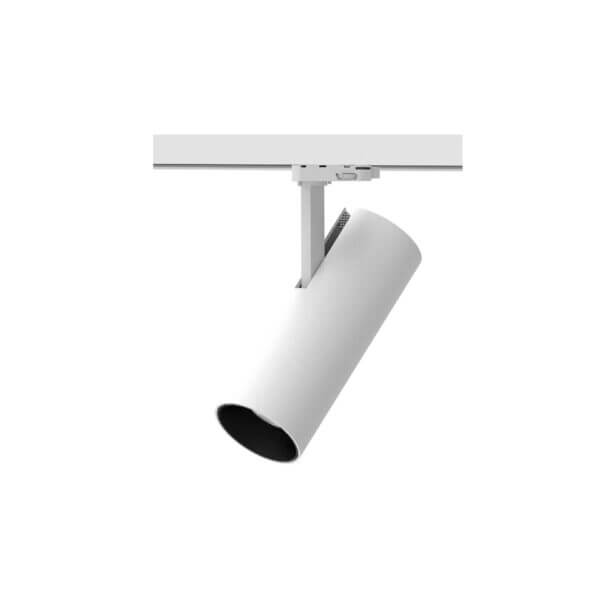

White version of the Tube R track luminaire by Light4U.

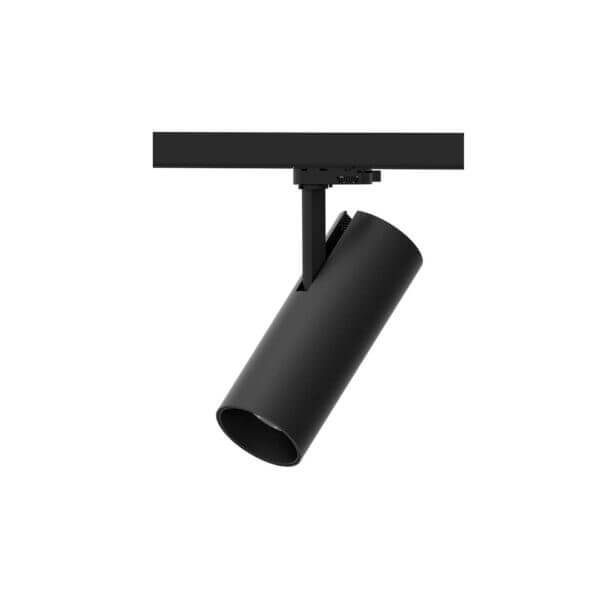

Black version of the Tube R track luminaire by Light4U.

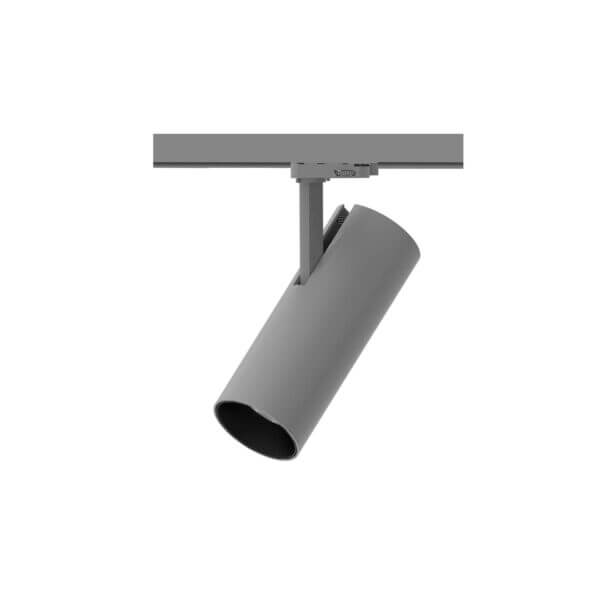

Grey version of the Tube R track luminaire by Light4U.

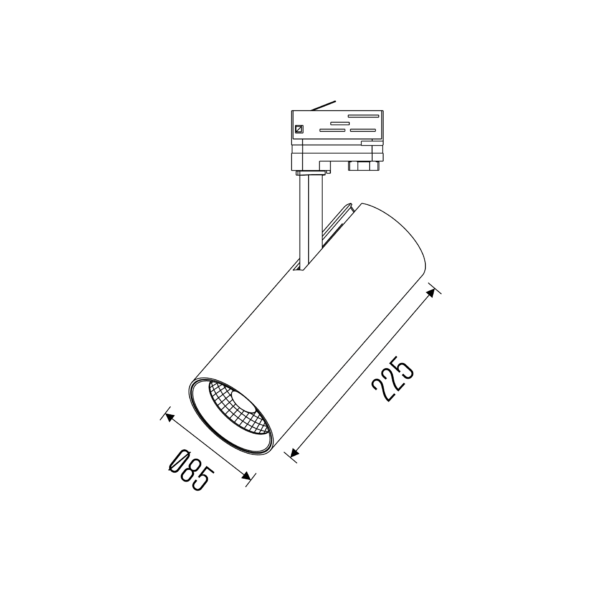

Technical drawing of the Tube R track luminaire, showing detailed dimensions and design specifications.

TUBE R

Limited stock

TUBE R

Versatility characterises the Tube. Grab the attention of customers by choosing special versions to highlight the colours of what you want to put in the spotlight. This makes this track spot perfect for retail establishments, boutiques, museums, showrooms and supermarkets. And, in addition to that, the various dimming and control options also makes the railspot a great solution for the hospitality industry.

Ultra high color accuracy across the full spectrum of visible light.
Accentuates the freshness of fruit and vegetables.
Warm yellowish light gives a perfect appearance to cheese and other dairy products.
Fresh and cooked meats have a saturated red colour under this light. A boost of red for the meat counter.
Bluish white light promotes freshness of fish and seafood.
This light colour has a light brown tinge to give an oven-fresh appearance to crusty bakery products.
Optimized light spectrum for perfect fashion presentation.
This LED module offers the high quality of light that is needed for displaying high value exhibits. The average value of the Art series is an impressive CRI 98. MacAdam 2 ellipses are provided in this special product category to also provide an outstanding color consistency.
For spot and accent lighting in fashion, retail, hospitality and supermarket applications.
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
Phase-cut dimming.
Digital dimming interface.
Analog dimming interface.
Wireless lighting control based on Bluetooth.
The luminaire is as well available for 1-phase tracks.
The luminaire is as well available for 3-phase tracks.
The clear glass is protecting the light source and reflector from dust and other dirt that could enter the optical part of the luminaire.
Honeycombs are widely used to reduce the direct glare. Luminaires with honeycombs have usually a tighter beam.
Shape the light by using barn doors. Two side flaps closed together produce a slim light shape like light passing through a partially open door. All four doors closed together will produce a square focussed beam of light.
Warranty on quality in years.
Replaceable control gear by a professional.
Replaceable (LED only) light source by a professional.

Article Number	CCT [K]	System Power [W]	Luminous Flux [lm]	Beam Angle [deg]	Housing Colour	Optic	Power Supply
2.011AHA930001500000	3000K	9.5W	1050lm	15°	White (RAL 9003)	Facet Anodized Aluminum Reflector	On/Off (non-dimmable)
2.011AHA930003000000	3000K	9.5W	1050lm	30°	White (RAL 9003)	Facet Anodized Aluminum Reflector	On/Off (non-dimmable)
2.011AHA930004500000	3000K	9.5W	1050lm	45°	White (RAL 9003)	Facet Anodized Aluminum Reflector	On/Off (non-dimmable)
2.011AHA940001500000	4000K	9.5W	1350lm	15°	White (RAL 9003)	Facet Anodized Aluminum Reflector	On/Off (non-dimmable)
2.011AHA940003000000	4000K	9.5W	1350lm	30°	White (RAL 9003)	Facet Anodized Aluminum Reflector	On/Off (non-dimmable)
2.011AHA940004500000	4000K	9.5W	1350lm	45°	White (RAL 9003)	Facet Anodized Aluminum Reflector	On/Off (non-dimmable)
2.011CHA930001500000	3000K	19W	2550lm	15°	White (RAL 9003)	Facet Anodized Aluminum Reflector	On/Off (non-dimmable)
2.011CHA930003000000	3000K	19W	2550lm	30°	White (RAL 9003)	Facet Anodized Aluminum Reflector	On/Off (non-dimmable)
2.011CHA930004500000	3000K	19W	2550lm	45°	White (RAL 9003)	Facet Anodized Aluminum Reflector	On/Off (non-dimmable)
2.011CHA940001500000	4000K	19W	2650lm	15°	White (RAL 9003)	Facet Anodized Aluminum Reflector	On/Off (non-dimmable)
2.011CHA940003000000	4000K	19W	2650lm	30°	White (RAL 9003)	Facet Anodized Aluminum Reflector	On/Off (non-dimmable)
2.011CHA940004500000	4000K	19W	2650lm	45°	White (RAL 9003)	Facet Anodized Aluminum Reflector	On/Off (non-dimmable)
2.011EHA930001500000	3000K	31W	3850lm	15°	White (RAL 9003)	Facet Anodized Aluminum Reflector	On/Off (non-dimmable)
2.011EHA930003000000	3000K	31W	3850lm	30°	White (RAL 9003)	Facet Anodized Aluminum Reflector	On/Off (non-dimmable)
2.011EHA930004500000	3000K	31W	3850lm	45°	White (RAL 9003)	Facet Anodized Aluminum Reflector	On/Off (non-dimmable)
2.011EHA940001500000	4000K	31W	4000lm	15°	White (RAL 9003)	Facet Anodized Aluminum Reflector	On/Off (non-dimmable)
2.011EHA940003000000	4000K	31W	4000lm	30°	White (RAL 9003)	Facet Anodized Aluminum Reflector	On/Off (non-dimmable)
2.011EHA940004500000	4000K	31W	4000lm	45°	White (RAL 9003)	Facet Anodized Aluminum Reflector	On/Off (non-dimmable)
2.011AHA9300015D0000	3000K	9.5W	1050lm	15°	White (RAL 9003)	Facet Anodized Aluminum Reflector	DALI-2 dimmable
2.011AHA9300030D0000	3000K	9.5W	1050lm	30°	White (RAL 9003)	Facet Anodized Aluminum Reflector	DALI-2 dimmable
2.011AHA9300045D0000	3000K	9.5W	1050lm	45°	White (RAL 9003)	Facet Anodized Aluminum Reflector	DALI-2 dimmable
2.011AHA9400015D0000	4000K	9.5W	1350lm	15°	White (RAL 9003)	Facet Anodized Aluminum Reflector	DALI-2 dimmable
2.011AHA9400030D0000	4000K	9.5W	1350lm	30°	White (RAL 9003)	Facet Anodized Aluminum Reflector	DALI-2 dimmable
2.011AHA9400045D0000	4000K	9.5W	1350lm	45°	White (RAL 9003)	Facet Anodized Aluminum Reflector	DALI-2 dimmable
2.011CHA9300015D0000	3000K	19W	2550lm	15°	White (RAL 9003)	Facet Anodized Aluminum Reflector	DALI-2 dimmable
2.011CHA9300030D0000	3000K	19W	2550lm	30°	White (RAL 9003)	Facet Anodized Aluminum Reflector	DALI-2 dimmable
2.011CHA9300045D0000	3000K	19W	2550lm	45°	White (RAL 9003)	Facet Anodized Aluminum Reflector	DALI-2 dimmable
2.011CHA9400015D0000	4000K	19W	2650lm	15°	White (RAL 9003)	Facet Anodized Aluminum Reflector	DALI-2 dimmable
2.011CHA9400030D0000	4000K	19W	2650lm	30°	White (RAL 9003)	Facet Anodized Aluminum Reflector	DALI-2 dimmable
2.011CHA9400045D0000	4000K	19W	2650lm	45°	White (RAL 9003)	Facet Anodized Aluminum Reflector	DALI-2 dimmable
2.011EHA9300015D0000	3000K	31W	3850lm	15°	White (RAL 9003)	Facet Anodized Aluminum Reflector	DALI-2 dimmable
2.011EHA9300030D0000	3000K	31W	3850lm	30°	White (RAL 9003)	Facet Anodized Aluminum Reflector	DALI-2 dimmable
2.011EHA9300045D0000	3000K	31W	3850lm	45°	White (RAL 9003)	Facet Anodized Aluminum Reflector	DALI-2 dimmable
2.011EHA9400015D0000	4000K	31W	4000lm	15°	White (RAL 9003)	Facet Anodized Aluminum Reflector	DALI-2 dimmable
2.011EHA9400030D0000	4000K	31W	4000lm	30°	White (RAL 9003)	Facet Anodized Aluminum Reflector	DALI-2 dimmable
2.011EHA9400045D0000	4000K	31W	4000lm	45°	White (RAL 9003)	Facet Anodized Aluminum Reflector	DALI-2 dimmable
