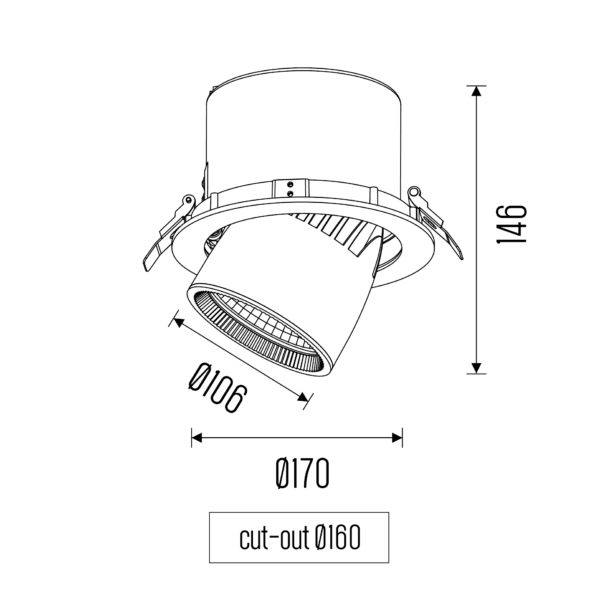

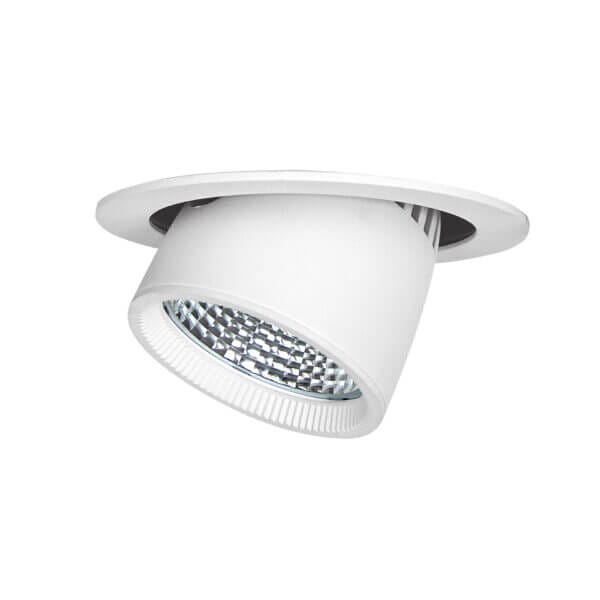

The fully adjustable Nimrod creates an unforgettable retail and shop experience. This fixture is often used for higher ceilings. The wide range of possible control and light spectrum options enables you to present the colours of your merchandise in the best possible way. Different connection cables are available upon request.
-
Ultra high color accuracy across the full spectrum of visible light.
-
Accentuates the freshness of fruit and vegetables.
-
Warm yellowish light gives a perfect appearance to cheese and other dairy products.
-
Fresh and cooked meats have a saturated red colour under this light. A boost of red for the meat counter.
-
Bluish white light promotes freshness of fish and seafood.
-
This light colour has a light brown tinge to give an oven-fresh appearance to crusty bakery products.
-
Optimized light spectrum for perfect fashion presentation.
-
This LED module offers the high quality of light that is needed for displaying high value exhibits. The average value of the Art series is an impressive CRI 98. MacAdam 2 ellipses are provided in this special product category to also provide an outstanding color consistency.
-
For spot and accent lighting in fashion, retail, hospitality and supermarket applications.
-
Dim to a warmer color from 3000K to 1800K for creating the right atmosphere.
-
Light color from 2700K to 6500K to set a individual color temperature depending on application. Used for well being (daylight simulation) and for increase the performance in offices and workshops.
-
Phase-cut dimming.
-
Digital dimming interface.
-
Analog dimming interface.
-
Wireless lighting control based on Bluetooth.
-
Built-in emergency unit for escape route lighting.
-
The clear glass is protecting the light source and reflector from dust and other dirt that could enter the optical part of the luminaire.
-
The frosted glass is protecting the light source and reflector from dust and other dirt that could enter the optical part of the luminaire. In addition to that, it also widens the beam and creates a different footprint.
-
Honeycombs are widely used to reduce the direct glare. Luminaires with honeycombs have usually a tighter beam.
-
Unified Glare Rating < 19, suitable for reading, writing, training, meetings and PC based working environments.
-
Warranty on quality in years.
-
Replaceable control gear by a professional.
-
Replaceable (LED only) light source by a professional.
| Article Number | Luminous Flux [lm] | System Power [W] | CCT [K] | Beam Angle [deg] | Housing Colour | Optic | Power Supply |
|---|---|---|---|---|---|---|---|
| 1.005F0A1830015D0000 | 1950lm | 23W | 1800K-3000K | 15° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005F0A1830030D0000 | 1950lm | 23W | 1800K-3000K | 30° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005F0A1830045D0000 | 1950lm | 23W | 1800K-3000K | 45° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005F0A1830060D0000 | 1950lm | 23W | 1800K-3000K | 60° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005F0B1830015D0000 | 1950lm | 23W | 1800K-3000K | 15° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005F0B1830030D0000 | 1950lm | 23W | 1800K-3000K | 30° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005F0B1830045D0000 | 1950lm | 23W | 1800K-3000K | 45° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005F0B1830060D0000 | 1950lm | 23W | 1800K-3000K | 60° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005F0C1830015D0000 | 1950lm | 23W | 1800K-3000K | 15° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005F0C1830030D0000 | 1950lm | 23W | 1800K-3000K | 30° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005F0C1830045D0000 | 1950lm | 23W | 1800K-3000K | 45° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005F0C1830060D0000 | 1950lm | 23W | 1800K-3000K | 60° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHA930001500000 | 1050lm | 9,5W | 3000K | 15° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHA930003000000 | 1050lm | 9,5W | 3000K | 30° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHA930004500000 | 1050lm | 9,5W | 3000K | 45° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHA930006000000 | 1050lm | 9,5W | 3000K | 60° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHA940001500000 | 1350lm | 9,5W | 4000K | 15° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHA940003000000 | 1350lm | 9,5W | 4000K | 30° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHA940004500000 | 1350lm | 9,5W | 4000K | 45° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHA940006000000 | 1350lm | 9,5W | 4000K | 60° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHB930001500000 | 1050lm | 9,5W | 3000K | 15° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHB930003000000 | 1050lm | 9,5W | 3000K | 30° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHB930004500000 | 1050lm | 9,5W | 3000K | 45° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHB930006000000 | 1050lm | 9,5W | 3000K | 60° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHB940001500000 | 1350lm | 9,5W | 4000K | 15° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHB940003000000 | 1350lm | 9,5W | 4000K | 30° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHB940004500000 | 1350lm | 9,5W | 4000K | 45° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHB940006000000 | 1350lm | 9,5W | 4000K | 60° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHC930001500000 | 1050lm | 9,5W | 3000K | 15° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHC930003000000 | 1050lm | 9,5W | 3000K | 30° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHC930004500000 | 1050lm | 9,5W | 3000K | 45° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHC930006000000 | 1050lm | 9,5W | 3000K | 60° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHC940001500000 | 1350lm | 9,5W | 4000K | 15° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHC940003000000 | 1350lm | 9,5W | 4000K | 30° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHC940004500000 | 1350lm | 9,5W | 4000K | 45° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHC940006000000 | 1350lm | 9,5W | 4000K | 60° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHA930001500000 | 2550lm | 19W | 3000K | 15° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHA930003000000 | 2550lm | 19W | 3000K | 30° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHA930004500000 | 2550lm | 19W | 3000K | 45° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHA930006000000 | 2550lm | 19W | 3000K | 60° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHA940001500000 | 2650lm | 19W | 4000K | 15° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHA940003000000 | 2650lm | 19W | 4000K | 30° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHA940004500000 | 2650lm | 19W | 4000K | 45° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHA940006000000 | 2650lm | 19W | 4000K | 60° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHB930001500000 | 2550lm | 19W | 3000K | 15° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHB930003000000 | 2550lm | 19W | 3000K | 30° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHB930004500000 | 2550lm | 19W | 3000K | 45° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHB930006000000 | 2550lm | 19W | 3000K | 60° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHB940001500000 | 2650lm | 19W | 4000K | 15° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHB940003000000 | 2650lm | 19W | 4000K | 30° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHB940004500000 | 2650lm | 19W | 4000K | 45° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHB940006000000 | 2650lm | 19W | 4000K | 60° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHC930001500000 | 2550lm | 19W | 3000K | 15° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHC930003000000 | 2550lm | 19W | 3000K | 30° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHC930004500000 | 2550lm | 19W | 3000K | 45° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHC930006000000 | 2550lm | 19W | 3000K | 60° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHC940001500000 | 2650lm | 19W | 4000K | 15° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHC940003000000 | 2650lm | 19W | 4000K | 30° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHC940004500000 | 2650lm | 19W | 4000K | 45° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005CHC940006000000 | 2650lm | 19W | 4000K | 60° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHA930001500000 | 3850lm | 31W | 3000K | 15° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHA930003000000 | 3850lm | 31W | 3000K | 30° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHA930004500000 | 3850lm | 31W | 3000K | 45° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHA930006000000 | 3850lm | 31W | 3000K | 60° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHA940001500000 | 4000lm | 31W | 4000K | 15° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHA940003000000 | 4000lm | 31W | 4000K | 30° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHA940004500000 | 4000lm | 31W | 4000K | 45° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHA940006000000 | 4000lm | 31W | 4000K | 60° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHB930001500000 | 3850lm | 31W | 3000K | 15° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHB930003000000 | 3850lm | 31W | 3000K | 30° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHB930004500000 | 3850lm | 31W | 3000K | 45° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHB930006000000 | 3850lm | 31W | 3000K | 60° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHB940001500000 | 4000lm | 31W | 4000K | 15° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHB940003000000 | 4000lm | 31W | 4000K | 30° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHB940004500000 | 4000lm | 31W | 4000K | 45° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHB940006000000 | 4000lm | 31W | 4000K | 60° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHC930001500000 | 3850lm | 31W | 3000K | 15° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHC930003000000 | 3850lm | 31W | 3000K | 30° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHC930004500000 | 3850lm | 31W | 3000K | 45° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHC930006000000 | 3850lm | 31W | 3000K | 60° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHC940001500000 | 4000lm | 31W | 4000K | 15° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHC940003000000 | 4000lm | 31W | 4000K | 30° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHC940004500000 | 4000lm | 31W | 4000K | 45° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005EHC940006000000 | 4000lm | 31W | 4000K | 60° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005GHA930001500000 | 5050lm | 40W | 3000K | 15° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005GHA930003000000 | 5050lm | 40W | 3000K | 30° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005GHA930004500000 | 5050lm | 40W | 3000K | 45° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005GHA930006000000 | 5050lm | 40W | 3000K | 60° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005GHB930001500000 | 5050lm | 40W | 3000K | 15° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005GHB930003000000 | 5050lm | 40W | 3000K | 30° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005GHB930004500000 | 5050lm | 40W | 3000K | 45° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005GHB930006000000 | 5050lm | 40W | 3000K | 60° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005GHC930001500000 | 5050lm | 40W | 3000K | 15° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005GHC930003000000 | 5050lm | 40W | 3000K | 30° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005GHC930004500000 | 5050lm | 40W | 3000K | 45° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005GHC930006000000 | 5050lm | 40W | 3000K | 60° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005HHA940001500000 | 5200lm | 40W | 4000K | 15° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005HHA940003000000 | 5200lm | 40W | 4000K | 30° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005HHA940004500000 | 5200lm | 40W | 4000K | 45° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005HHA940006000000 | 5200lm | 40W | 4000K | 60° | White (RAL 9003) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005HHB940001500000 | 5200lm | 40W | 4000K | 15° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005HHB940003000000 | 5200lm | 40W | 4000K | 30° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005HHB940004500000 | 5200lm | 40W | 4000K | 45° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005HHB940006000000 | 5200lm | 40W | 4000K | 60° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005HHC940001500000 | 5200lm | 40W | 4000K | 15° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005HHC940003000000 | 5200lm | 40W | 4000K | 30° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005HHC940004500000 | 5200lm | 40W | 4000K | 45° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005HHC940006000000 | 5200lm | 40W | 4000K | 60° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | On/Off (non-dimmable) |
| 1.005AHA9300015D0000 | 1050lm | 9,5W | 3000K | 15° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHA9300030D0000 | 1050lm | 9,5W | 3000K | 30° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHA9300045D0000 | 1050lm | 9,5W | 3000K | 45° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHA9300060D0000 | 1050lm | 9,5W | 3000K | 60° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHA9400015D0000 | 1350lm | 9,5W | 4000K | 15° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHA9400030D0000 | 1350lm | 9,5W | 4000K | 30° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHA9400045D0000 | 1350lm | 9,5W | 4000K | 45° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHA9400060D0000 | 1350lm | 9,5W | 4000K | 60° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHB9300015D0000 | 1050lm | 9,5W | 3000K | 15° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHB9300030D0000 | 1050lm | 9,5W | 3000K | 30° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHB9300045D0000 | 1050lm | 9,5W | 3000K | 45° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHB9300060D0000 | 1050lm | 9,5W | 3000K | 60° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHB9400015D0000 | 1350lm | 9,5W | 4000K | 15° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHB9400030D0000 | 1350lm | 9,5W | 4000K | 30° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHB9400045D0000 | 1350lm | 9,5W | 4000K | 45° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHB9400060D0000 | 1350lm | 9,5W | 4000K | 60° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHC9300015D0000 | 1050lm | 9,5W | 3000K | 15° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHC9300030D0000 | 1050lm | 9,5W | 3000K | 30° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHC9300045D0000 | 1050lm | 9,5W | 3000K | 45° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHC9300060D0000 | 1050lm | 9,5W | 3000K | 60° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHC9400015D0000 | 1350lm | 9,5W | 4000K | 15° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHC9400030D0000 | 1350lm | 9,5W | 4000K | 30° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHC9400045D0000 | 1350lm | 9,5W | 4000K | 45° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005AHC9400060D0000 | 1350lm | 9,5W | 4000K | 60° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHA9300015D0000 | 2550lm | 19W | 3000K | 15° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHA9300030D0000 | 2550lm | 19W | 3000K | 30° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHA9300045D0000 | 2550lm | 19W | 3000K | 45° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHA9300060D0000 | 2550lm | 19W | 3000K | 60° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHA9400015D0000 | 2650lm | 19W | 4000K | 15° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHA9400030D0000 | 2650lm | 19W | 4000K | 30° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHA9400045D0000 | 2650lm | 19W | 4000K | 45° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHA9400060D0000 | 2650lm | 19W | 4000K | 60° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHB9300015D0000 | 2550lm | 19W | 3000K | 15° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHB9300030D0000 | 2550lm | 19W | 3000K | 30° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHB9300045D0000 | 2550lm | 19W | 3000K | 45° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHB9300060D0000 | 2550lm | 19W | 3000K | 60° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHB9400015D0000 | 2650lm | 19W | 4000K | 15° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHB9400030D0000 | 2650lm | 19W | 4000K | 30° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHB9400045D0000 | 2650lm | 19W | 4000K | 45° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHB9400060D0000 | 2650lm | 19W | 4000K | 60° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHC9300015D0000 | 2550lm | 19W | 3000K | 15° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHC9300030D0000 | 2550lm | 19W | 3000K | 30° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHC9300045D0000 | 2550lm | 19W | 3000K | 45° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHC9300060D0000 | 2550lm | 19W | 3000K | 60° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHC9400015D0000 | 2650lm | 19W | 4000K | 15° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHC9400030D0000 | 2650lm | 19W | 4000K | 30° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHC9400045D0000 | 2650lm | 19W | 4000K | 45° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005CHC9400060D0000 | 2650lm | 19W | 4000K | 60° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHA9300015D0000 | 3850lm | 31W | 3000K | 15° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHA9300030D0000 | 3850lm | 31W | 3000K | 30° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHA9300045D0000 | 3850lm | 31W | 3000K | 45° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHA9300060D0000 | 3850lm | 31W | 3000K | 60° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHA9400015D0000 | 4000lm | 31W | 4000K | 15° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHA9400030D0000 | 4000lm | 31W | 4000K | 30° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHA9400045D0000 | 4000lm | 31W | 4000K | 45° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHA9400060D0000 | 4000lm | 31W | 4000K | 60° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHB9300015D0000 | 3850lm | 31W | 3000K | 15° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHB9300030D0000 | 3850lm | 31W | 3000K | 30° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHB9300045D0000 | 3850lm | 31W | 3000K | 45° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHB9300060D0000 | 3850lm | 31W | 3000K | 60° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHB9400015D0000 | 4000lm | 31W | 4000K | 15° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHB9400030D0000 | 4000lm | 31W | 4000K | 30° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHB9400045D0000 | 4000lm | 31W | 4000K | 45° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHB9400060D0000 | 4000lm | 31W | 4000K | 60° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHC9300015D0000 | 3850lm | 31W | 3000K | 15° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHC9300030D0000 | 3850lm | 31W | 3000K | 30° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHC9300045D0000 | 3850lm | 31W | 3000K | 45° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHC9300060D0000 | 3850lm | 31W | 3000K | 60° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHC9400015D0000 | 4000lm | 31W | 4000K | 15° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHC9400030D0000 | 4000lm | 31W | 4000K | 30° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHC9400045D0000 | 4000lm | 31W | 4000K | 45° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005EHC9400060D0000 | 4000lm | 31W | 4000K | 60° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005GHA9300015D0000 | 5050lm | 40W | 3000K | 15° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005GHA9300030D0000 | 5050lm | 40W | 3000K | 30° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005GHA9300045D0000 | 5050lm | 40W | 3000K | 45° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005GHA9300060D0000 | 5050lm | 40W | 3000K | 60° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005GHB9300015D0000 | 5050lm | 40W | 3000K | 15° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005GHB9300030D0000 | 5050lm | 40W | 3000K | 30° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005GHB9300045D0000 | 5050lm | 40W | 3000K | 45° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005GHB9300060D0000 | 5050lm | 40W | 3000K | 60° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005GHC9300015D0000 | 5050lm | 40W | 3000K | 15° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005GHC9300030D0000 | 5050lm | 40W | 3000K | 30° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005GHC9300045D0000 | 5050lm | 40W | 3000K | 45° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005GHC9300060D0000 | 5050lm | 40W | 3000K | 60° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005HHA9400015D0000 | 5200lm | 40W | 4000K | 15° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005HHA9400030D0000 | 5200lm | 40W | 4000K | 30° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005HHA9400045D0000 | 5200lm | 40W | 4000K | 45° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005HHA9400060D0000 | 5200lm | 40W | 4000K | 60° | White (RAL 9003) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005HHB9400015D0000 | 5200lm | 40W | 4000K | 15° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005HHB9400030D0000 | 5200lm | 40W | 4000K | 30° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005HHB9400045D0000 | 5200lm | 40W | 4000K | 45° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005HHB9400060D0000 | 5200lm | 40W | 4000K | 60° | Black (RAL 9005) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005HHC9400015D0000 | 5200lm | 40W | 4000K | 15° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005HHC9400030D0000 | 5200lm | 40W | 4000K | 30° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005HHC9400045D0000 | 5200lm | 40W | 4000K | 45° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
| 1.005HHC9400060D0000 | 5200lm | 40W | 4000K | 60° | Grey (RAL 9006) | Facet Anodized Aluminum Reflector | DALI-2 dimmable |
