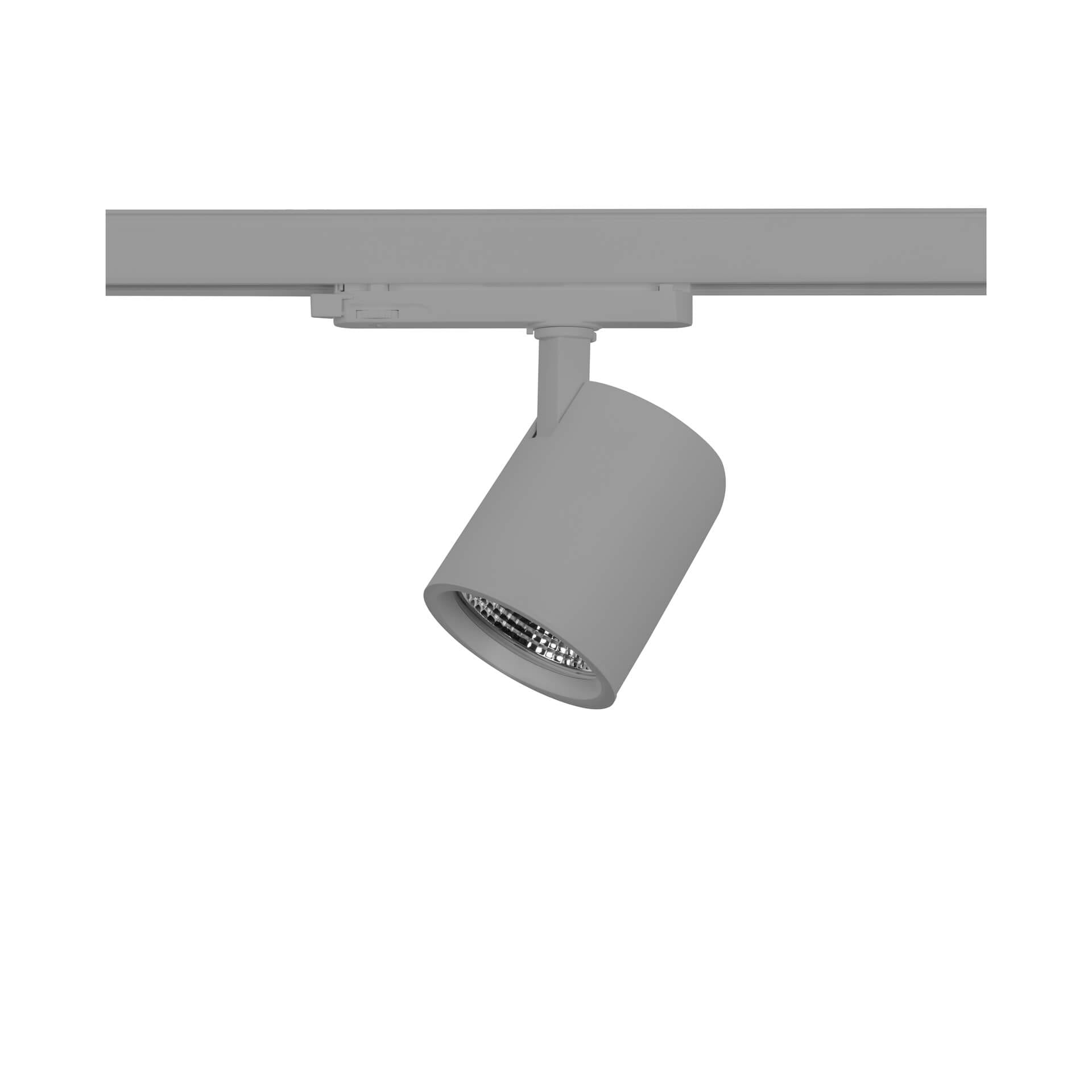

EDDA M HE
| Article Number | : 2.028EHC183045D0000 |
|---|---|
| Installation Method | : Track Mounted |
| Housing Material | : Die Cast Aluminum |
| Housing Colour | : Grey (RAL 9006) |
| Adjustability | : 350° rotational and 90° tiltable |
| Optic | : Facet Anodized Aluminum Reflector |
| Beam Angle [deg] | : 45° |
| System Power [W] | : 23W |
| Luminous Flux [lm] | : 2100lm |
| System Efficiency [lm/W] | : 91lm/W |
| CCT [K] | : 1800K-3000K |
| CRI [Ra] | : (Ra) >90 |
| Chromaticity Tolerance | : 3 |
| Mains Voltage [VAc] | : 220-240V / 50-60Hz |
| Ambient Temperature [degC] | : 35°C |
| Ingress Protection | : IP20 |
| Light Source Energy Class | : G |
| Light Source Identifier | : BXRV-DR-1830G-2000-A |
| Lifetime/Failure Rate [h] | : >100000h/L80B20 / >50000h/L90B50 |
| Electrical Safety Class | : Class II |
| Net Weight [kg] | : 0.85kg |
| Certifications/Declarations | : CE/UKCA |
| Warranty [Y] | : 5 years |
All rated values @ ambient temperature of 25° C. Electric and photometric values are initially subject to a tolerance of +/- 10%. Tolerance of color temperature +/- 150K. Technical data can change without prior notice.
